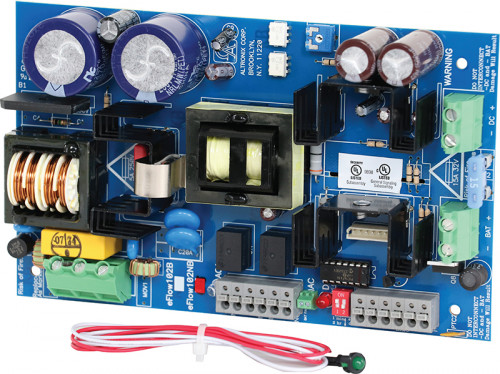

eFlow102RLB

Power Supply Charger, With LED Cable Assembly, 12VDC @ 10A, 120VAC, Board

Altronix eFlow102RLB power supply/charger converts a 120VAC, 60Hz input into a single 12VDC output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Includes LED cable assembly and LED lens.

Specifications

  • Input
    • Voltage: 120VAC, 60Hz, 3.5A max.
    • Input Fuse: 5A/250V.
  • Output
    • Voltage: 12VDC
    • Current: 10A continuous max.
    • Auxiliary: Power-limited @ 1A (unswitched)
    • Other: Overvoltage protection
    • Filtered and regulated
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Fuse Rating: 15A/32V
    • Failover Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching
    • EOL: 10K Resistor
  • Supervision
    • AC Failure: Form "C" contacts
    • Battery: Form "C" contacts
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units (depending on the power supply). Prevents deep battery discharge
  • Indicators (LED)
    • Input: 120VAC is present
    • DC Output: Powered
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 61 BTU/Hr.

Agency Listings

UL Listed For:
Access Control System Units (UL294)
Power Supplies for use with Burglar Alarm Systems (UL603)
Power Supplies for Fire Protective Signaling Systems (UL1481)
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
CSA Standard C22.2 No.205-M1983, Signal Equipment
ULC-S318-96 - Power Supplies for Burglar Alarm Systems. Also suitable for Access Control.

Accessories

Name Description
LINQ2 Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers

Dimensions & Weight

Dimensions (approximate):
  • 4.6"W x 7.5"L x 1.75"H (116.84 mm W x 190.5 mm L x 44.45 mm H).
Weights (approximate):
  • Product Weigtht: 0.85 Lbs. (0.39 kg).
  • Shipping Weigtht: 1 Lbs. (0.45 kg).
