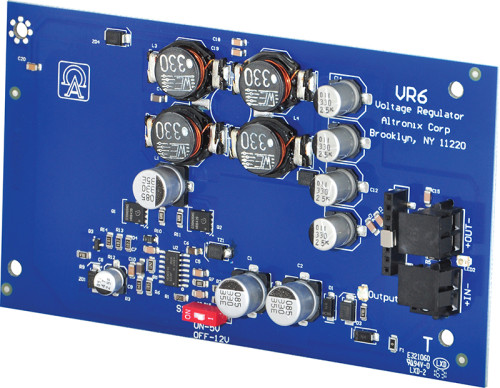

VR6

Voltage Regulator. 24VDC input into 5VDC or 12VDC output

Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply current. It reduces the cost of adding an additional power supply to achieve 24VDC and 12VDC or 5VDC simultaneously.

Specifications

  • Power Input / Output
    • Input: 24VDC @ 1.75A - Output: 5VDC @ 6A.
    • Input: 24VDC @ 3.5A - Output: 12VDC @ 6A.
  • Output
    • 5VDC or 12VDC regulated output.
    • Output rating 6A max.
    • Surge suppression.
  • LED Indicators
    • Input and output LEDs.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 5VDC: 15 BTU/Hr.
        • 12VDC: 37 BTU/Hr.

Agency Listings

UL Listed For:
Access Control System Units (UL294)
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.

Accessories

Name Description
PDS8 Dual Input Power Distribution Module, 8 Fused Outputs
PDS8CB Dual Input Power Distribution Module, 8 PTC Outputs

Dimensions & Weight

Dimensions (approximate):
  • 3"W x 5.375"L x 1"H (76.2 mm W x 136.5 mm L x 25.4 mm H).
Weights (approximate):
  • Product Weigtht: 0.4 Lbs. (0.18 kg).
  • Shipping Weigtht: 0.5 Lbs. (0.23 kg).
