NetWaySP4BTWPX

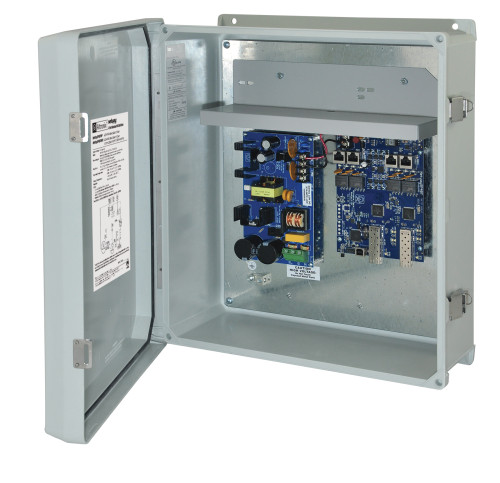

Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Hardened 240W Power Supply/Optimized SLA or LiFePO4 Battery Charger & Switch Boards mounted in larger NEMA4/4X, IP66 rated Outdoor enclosure; LINQ

Altronix NetWaySP4BTWPX supports up to 90W per port (240W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTWP accommodates single/multi-mode fiber or Hybrid Cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/ injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.

Specifications

  • Input
    • Voltage: 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A.
    • Fusing: 5A/250V.
  • Power Output
      • Maximum Power:
        • Four (4) PoE ports rated at 90W each, 240W total power.
        • IEEE 802.3af (15W), IEEE 802.3at (30W),
        • IEE 802.3bt (90W) compliant.
        • Integral surge protection.
  • SFP Ports
    • Two (2) Gigabit SFP ports.
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or better structured cable.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • Battery Charging
    • Type: 24VDC charging circuit charges LiFePO4 (Lithium Iron Phosphate) or sealed lead acid or gel type batteries (require separate ventilated enclosure).
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • VLAN
    • Multiple management VLAN assignment.
    • 802.1Q Tagged VLAN.
    • Up to 10 VLAN groups. ID Range 2-4095.
  • LINQ Technology
    • Remote network management allows for camera/device reset and diagnostic monitoring.
    • Provides local and/or remote access to critical information via LAN/WAN.
    • Email and Windows Dashboard Alert notifications report real-time events.
    • Event log tracks history.
  • Environmental
      • Temperature:
        • Operating (240W): - 40° C to 55° C ( - 40° F to 131° F).
        • Operating (180W): - 40° C to 65° C ( - 40° F to 149° F).
        • Operating (150W): - 40° C to 75° C ( - 40° F to 167° F).
    • Storage: - 40° C to 85° C ( - 40° F to 185° F).
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr. (approx.): 61 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

Agency Listings


CE Compliant

Accessories

Name Description
NetWaySP1A PoE Powered Ethernet to Fiber Media Converter/Repeater.
P1AB2K Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
P1GCE Small Form-Factor Pluggable (SFP) Copper Transceiver
P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver
P1SM10 Small Form-Factor Pluggable (SFP) Single Mode Transceiver
WG1 NEMA Rated Wire Gland Inlets
PMK2 Pole Mount Kit, For Outdoor Enclosures
Vent2 Air Vents For NEMA4/4X Rated Enclosures
LOCK1WP Pad Lock for Altronix NEMA 4/4X Rated Outdoor Enclosures

Similar Products

Name Description
NetWaySP4BTB Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, supports 240W total); Requires 48-56V input, Hardened, Switch Board Only, LINQ
NetWaySP4BTWPN Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Requires 48-56V input, Hardened Switch Board mounted in NEMA4/4X, IP66 rated Outdoor enclosure; LINQ
NetWaySP4BTWP Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Hardened 240W Power Supply/Optimized SLA or LiFePO4 Battery Charger, & Switch Boards mounted in NEMA4/4X, IP66 rated Outdoor enclosure; LINQ
NetWaySP4BTX Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Hardened 240W Power Supply/Optimized SLA or LiFePO4 Battery Charger & Switch Boards mounted in metal Indoor BC300 enclosure; LINQ
NetWaySP4BTPL Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Hardened 240W Power Supply/Optimized SLA or LiFePO4 Battery Charger & Switch Boards mounted on metal backplane; LINQ

Dimensions & Weight

Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weigtht: 15 Lbs. (6.8 kg).
  • Shipping Weigtht: 17.5 Lbs. (7.9 kg).
