NetWaySP4BTB

Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, supports 240W total); Requires 48-56V input, Hardened, Switch Board Only, LINQ

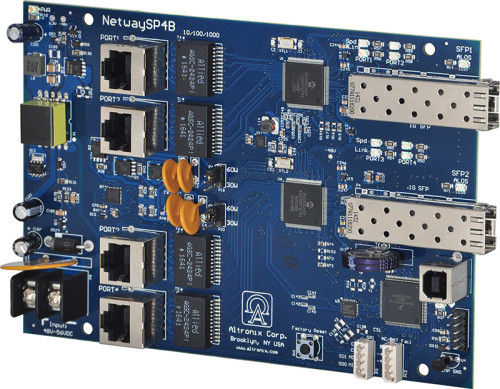

Altronix NetWaySP4BTB switch board supports up to 90W per port (320W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTB accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.

Specifications

  • Input
    • 48V-57V (UL Listed ITE power supply)
  • Output
    • Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 320W total power).
    • IEEE 802.3af, 802.3at, 802.3bt compliant
  • SFP Ports
    • Two (2) Gigabit SFP ports
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or higher structured cable.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • VLAN
    • Multiple management VLAN assignment.
    • 802.1Q Tagged VLAN.
    • Up to 10 VLAN groups. ID Range 2-4095.
  • LINQ Technology
    • Remote network management allows for camera/device reset and diagnostic monitoring.
    • Provides local and/or remote access to critical information via LAN/WAN.
    • Email and Windows Dashboard Alert notifications report real-time events.
    • Event log tracks history.
  • Environmental
      • Operating:
        • (240W): - 40ºC to 55ºC (- 40ºF to 131ºF)
        • (180W): - 40ºC to 65ºC (- 40ºF to 149ºF)
        • (150W): - 40ºC to 75ºC (- 40ºF to 167ºF)
    • Storage: - 40ºC to 85ºC (- 40ºF to 185ºF)
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr. (approx.): 61 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

Agency Listings


CE Compliant

Accessories

Name Description
NetWaySP1A PoE Powered Ethernet to Fiber Media Converter/Repeater.
NetWaySP4PX 4-port Fiber Optic Transceivers with Built-In Power Supply/Charger for conventional Fiber or composite cable (fiber+copper) Application; 120W per port (480W total)
P1AB2K Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
P1GCE Small Form-Factor Pluggable (SFP) Copper Transceiver
P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver
P1SM10 Small Form-Factor Pluggable (SFP) Single Mode Transceiver
POE367 360W/277V Input Power Supply/Charger Board
POE360 54VDC/360W Power Supply/Charger Board
POE240 56VDC/240W Power Supply/Charger Board.

Similar Products

Name Description
NetWaySP4BTWPN Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Requires 48-56V input, Hardened Switch Board mounted in NEMA4/4X, IP66 rated Outdoor enclosure; LINQ
NetWaySP4BTWP Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Hardened 240W Power Supply/Optimized SLA or LiFePO4 Battery Charger, & Switch Boards mounted in NEMA4/4X, IP66 rated Outdoor enclosure; LINQ
NetWaySP4BTWPX Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Hardened 240W Power Supply/Optimized SLA or LiFePO4 Battery Charger & Switch Boards mounted in larger NEMA4/4X, IP66 rated Outdoor enclosure; LINQ
NetWaySP4BTX Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Hardened 240W Power Supply/Optimized SLA or LiFePO4 Battery Charger & Switch Boards mounted in metal Indoor BC300 enclosure; LINQ
NetWaySP4BTPL Dual 1G Fiber Optic SFP, 4-ports 10/100/1000 802.3bt 4PPoE (90W max each, 240W total); Hardened 240W Power Supply/Optimized SLA or LiFePO4 Battery Charger & Switch Boards mounted on metal backplane; LINQ

Dimensions & Weight

Dimensions (approximate):
  • 4.5"W x 5.625"L x 0.625"H (142.9 mm W x 158.8 mm L x 15.9 mm H).
Weights (approximate):
  • Product Weigtht: 0.4 Lbs. (0.18 kg).
  • Shipping Weigtht: 0.75 Lbs. (0.34 kg).
