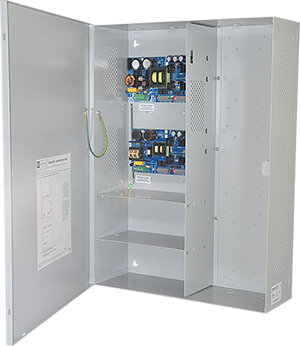

Maximal Expandable Power Systems provides designers and installers with “maximum” power choices and the highest levels of versatility. They provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable UL Listed sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications..
Maximal Expendable Power System Features:
- 120VAC 60Hz. input. (220VAC input models available)
- Additional aux. power-limited output(s) rated @ 1 amp (unswitched).
- Supervised Fire Alarm disconnect.
- Over voltage protection - guards against equipment damage
- Built-in charger for sealed lead acid or gel type batteries.
- AC fail supervision, battery fail & presence supervision.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
- Low battery cutoff - prevents batteries from discharge.
- Green AC Power LED indicates 120VAC present.
- AC input and DC output LED indicators.
- Short circuit and overload protection.
- Enclosure Dimensions: 27.25"H x 19"W x 6.5"D
- UL Listed in the U.S. and Canada for Access Control, CSFM Approved and CE Approved.

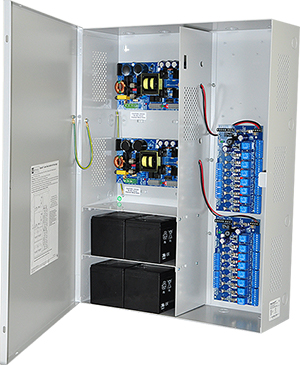

Maximal Access Power Controllers distribute and switch power to access control systems and accessories. They converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC and/or 24VDC fuse protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.
Maximal Access Power Controllers Features:
- 120VAC 60Hz. input. (220VAC input models available)
- Sixteen (16) Access Control System trigger inputs.
- Input options:
- Sixteen (16) normally open [NO] inputs.
- Sixteen (16) open collector inputs.
- Any combination of the above.
- Sixteen (16) independently controlled fuse protected outputs.
- Output options (models with fuse protected outputs):
- Sixteen (16) Fail-Safe and/or Fail-Secure power outputs.
- Sixteen (16) form "C" 5 amp rated relay outputs.
- Any combination of the above.
- Output options (models with PTC protected outputs):
- Sixteen (16) Fail-Safe and/or Fail-Secure power outputs.
- Sixteen (16) auxiliary power outputs (unswitched) .
- ACM8 main fuse is rated @ 10 amp.
- Red LEDs indicate outputs are triggered (relays energized).
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the Sixteen (16) outputs.
- Fire Alarm disconnect input options:
- Normally open [NO] or normally closed [NC] dry contact input.
- Polarity reversal input from FACP signaling circuit.
- 120VAC 60Hz. input.
- Additional aux. power-limited output(s) rated @ 1 amp (unswitched).
- Supervised Fire Alarm disconnect.
- Over voltage protection - guards against equipment damage
- Built-in charger for sealed lead acid or gel type batteries.
- AC fail supervision, battery fail & presence supervision.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
- Low battery cutoff - prevents batteries from discharge.
- Green AC Power LED indicates 120VAC present.
- AC input and DC output LED indicators.
- Short circuit and overload protection.
- Includes cam lock and battery leads.
- Enclosure Dimensions: 27.25"H x 19"W x 6.5"D
- UL Listed in the U.S. and Canada for Access Control, CSFM Approved and CE Approved.
