eBridge Ethernet over coax Adapters are a cost-effective solution to upgrade and expand security and surveillance utilizing coax, while supporting PoE, PoE+ and Hi-PoE devices. eBridge can reach distances up to 500m – five times standard Ethernet range.

  • Transmits IP video/data over coax cable up to 500m without repeaters at 25Mbps or 300m at 100Mbps
  • Upgrade to IP while reducing labor and installation costs of deploying new cable
  • Supports PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) PTZs, illuminators and other IP devices
  • Indoor and Outdoor versions available.
  • UL Listed in the U.S. and Canada, CE Approved and C-Tick Compliant

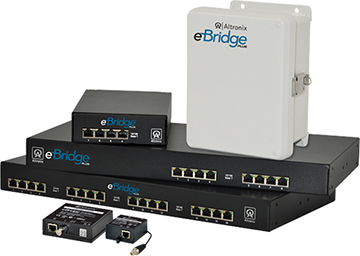

eBridge Group

eBridge 100Mbps Series

eBridge 100Mbps Single Port Adaptor Kits

Model Number Description
eBridge100RMT
 EoC or Long Range Ethernet Single Port Adapter Kit, 100Mbps, Passes PoE/PoE+, Includes Receiver & Transceiver
eBridge100STR
 EoC Single Port Adapter Kit, 100Mbps, Passes PoE/PoE+, Includes Receiver & Small Transceiver

eBridge 100Mbps Single Port Receivers

Model Number Description
eBridge100RM
 EoC or Long Range Ethernet Single Port Receiver, 100Mbps, Passes PoE/PoE+, Requires Compatible Transceiver
eBridge100SPR
 EoC Single Port Receiver, 100Mbps, Generates PoE/PoE+/Hi-PoE 60W, 51-56VDC, Used w/ eBridge200WPM or eBridge4SPT

eBridge 100Mbps Multi-Port Receivers

Model Number Description
eBridge1600PCRM
 EoC 16 Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver, 1U
eBridge400PCRM
 EoC 4 Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver
eBridge800PCRM
 EoC 8 Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver

eBridge 100Mbps Multi-Port Receivers w/PoE+ Switch

Model Number Description

eBridge 100Mbps Transceivers

Model Number Description
eBridge100ST
 EoC Single Port Small Transceiver, 100Mbps, Passes PoE/PoE+, Requires Compatible Receiver
eBridge100TM
 EoC or Long Range Ethernet Single Port Transceiver, 100Mbps, Passes PoE/PoE+, Requires Compatible Receiver

eBridge 100Mbps Outdoor Transceivers

Model Number Description
eBridge200WPM
 EoC or Long Range Ethernet 2 Port Transceiver, Outdoor, Passes PoE/PoE+/Hi-PoE 60W from Receiver, Requires Compatible Receiver
eBridge200WPMH
 EoC or Long Range Ethernet 2 Port Transceiver, Outdoor, Passes PoE/PoE+/Hi-PoE 60W from Receiver, Requires Compatible Receiver, 3 wiring inlets with glands

eBridge 100Mbps Specialty Items

Model Number Description

eBridge 25Mbps Series

eBridge 25Mbps Single Port Adaptor Kits

Model Number Description
eBridge1CRT
 EoC Single Port Adapter Kit, 25Mbps, silmultaneous composite video, 12/24VDC or 16/24VAC, Includes Receiver & Transceiver
eBridge1PCRMT
 EoC Single Port Adapter Kit, 25Mbps, Passes PoE/PoE+, Includes Receiver & Transceiver
eBridge1PCRT
 EoC Single Port Adapter Kit, 25Mbps, Generates PoE, Receiver Requires 24VDC or 24VAC, Includes Receiver & Transceiver
eBridge1PCRTX
 EoC Single Port Adapter Kit, 25Mbps, Generates PoE/PoE+, Receiver Requires 24VDC or 56VDC, Includes Receiver & Transceiver
eBridge1STR
 EoC Single Port Adapter Kit, 25Mbps, Passes PoE/PoE+, Includes Receiver & Small Transceiver

eBridge 25Mbps Single Port Receivers

Model Number Description
eBridge1CR
 EoC Single Port Receiver, 25Mbps, Passes silmultaneous composite video, 12/24VDC or 16/24VAC, Requires Compatible Transceiver
eBridge1PCR
 EoC Single Port Receiver, 25Mbps, Generates PoE, 24VDC or 24VAC, Requires Compatible Transceiver
eBridge1PCRM
 EoC Single Port Receiver, 25Mbps, Passes PoE/PoE+, Requires Compatible Transceivers
eBridge1PCRX
 EoC Single Port Receiver, 25Mbps, Generates PoE/PoE+, 24/56VDC, Requires Compatible Transceiver

eBridge 25Mbps Multi-Port Receivers

Model Number Description
eBridge16CR
 EoC 16 Port Receiver, 25Mbps per port, Passes silmultaneous composite video, 24/56VDC or 24VAC,Requires Compatible Transceiver, 1U
eBridge16PCRM
 EoC 16 Port Receiver, 25Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver, 1U
eBridge16PCRX
 EoC 16 Port Receiver, 25Mbps per port, Generates PoE/PoE+, Two (2) 48-56 VDC, Requires Compatible Transceiver, 1U
eBridge4CR
 EoC 4 Port Receiver, 25Mbps per port, Passes silmultaneous composite video, 24/56VDC or 24VAC, Requires Compatible Transceiver
eBridge4PCRM
 EoC 4 Port Receiver, 25Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver
eBridge4PCRX
 EoC 4 Port Receiver, 25Mbps per port, Generates PoE/PoE+, 48-56 VDC, Requires Compatible Transceiver
eBridge8PCRM
 EoC 8 Port Receiver, 25Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver
eBridge8PCRX
 EoC 8 Port Receiver, 25Mbps per port, Generates PoE/PoE+, 48-56 VDC, Requires Compatible Transceiver

eBridge 25Mbps Multi-Port Receivers w/PoE+ Switch

Model Number Description

eBridge 25Mbps Transceivers

Model Number Description
eBridge1CT
 EoC Single Port Transceiver, 25Mbps, silmultaneous composite video, 12/24VDC or 16/24VAC, Requires Compatible Receiver
eBridge1PCT
 EoC Single Port Transceiver, 25Mbps, Passes PoE from Receiver, Requires Compatible Receiver
eBridge1PCTX
 EoC Single Port Transceiver, 25Mbps, Passes PoE/PoE+ from Receiver, Requires Compatible Receiver
eBridge1ST
 EoC Single Port Small Transceiver, 25Mbps, Passes PoE/PoE+ from Receiver, Requires Compatible Receiver
